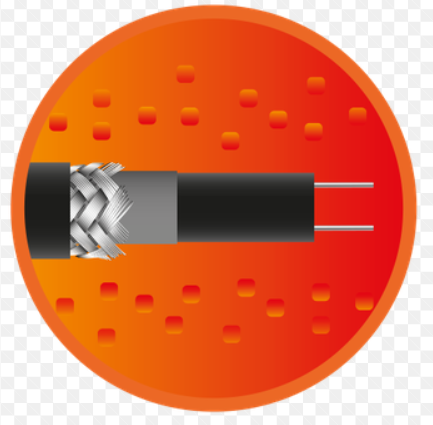

Properties of heating tape
• Self-regulating 11W/m @5°C
• Cut-to-length
• Technical data : Cable with Adflex overjacket and aluminium foll earth braiding Maximum exposure temperature (unpowered): 65°C
Maximum operating temperature: 65°C
Nominal voltage: 230V
Min. bending radius: 35mm
Min. installation temperature: -30°C
Buswires: nickel plated copper
Dimension : 8x5mm
Maximum recommended length of heating circuit at 230 VAC using Type-C circuit breakers:
16A 191m @+10C°
CERTIFICATES : ATEX Ex. CE
